Product Description
*If shipped to a NJ address sales tax will be applied
This spark plug kit part # 3861326 comes directly from Volvo
2 PACKS OF 4 SPARK PLUG

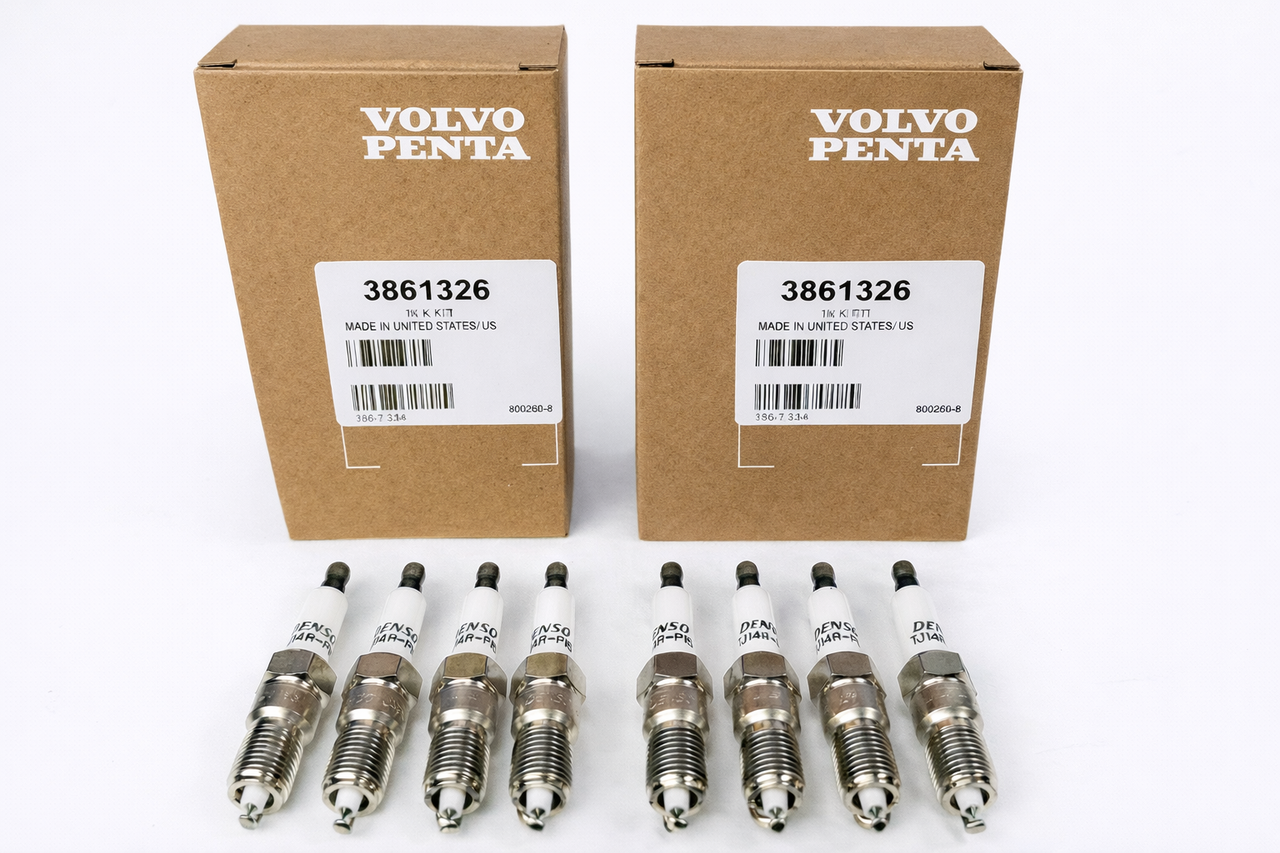

They will arrive in a Volvo Penta box as shown in the picture.
The following tables provide spark plug gap, and installation torque:
Engine Model Gap Torque
3.0 GS 0.045 in. (1.14 mm) 20 ft. lb. (27 N•m)
4.3 GL/GXi 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
5.0 GL 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
5.0 GXi 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
5.7 GL 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
5.7 Gi 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
5.7 GXi 0.060 in. (1.52 mm) 20 ft. lb. (27 N•m)
8.1 Gi 0.060 in. (1.52 mm) 22 ft. lb. (30 N•m)
8.1 GXi 0.060 in. (1.52 mm) 22 ft. lb. (30 N•m)
DPX375/420 0.060 in. (1.52 mm) 22 ft. lb. (30 N•m)
Engine Model P/N Firing order
3.0 GS 1–3–4–2
4.3 GL/GXi 1–6–5–4–3–2
5.0 GL 1–8–4–3–6–5–7–2
5.0 GXi 1–8–4–3–6–5–7–2
5.7 GL 1–8–4–3–6–5–7–2
5.7 Gi 1–8–4–3–6–5–7–2
5.7 GXi 1–8–4–3–6–5–7–2
8.1 Gi 1–8–7–2–6–5–4–3
8.1 GXi 1–8–7–2–6–5–4–3
DPX375/420 1–8–7–2–6–5–4–3
